Tee & Solid Tee, Elbow, Adaptor
Catalog items
Outer Screw Coupling Clip Tee & Solid Tee Solid Elbow Straight Elbow
Connect via:

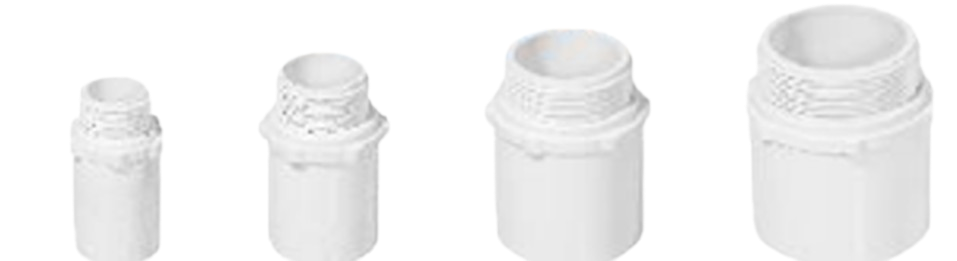

Outer Screw Coupling
| # | Description | Measurement | Package |
|---|---|---|---|
| DS004-1 | 20mm Outer Screw Coupling | 24 X 48mm | 100/2000 |
| DS005-1 | 25mm Outer Screw Coupling | 29.7 X 50.5mm | 50/1000 |
| DS006-1 | 32mm Outer Screw Coupling | 37 X 39.5mm | 20/500 |
| DS080-1 | 40mm Outer Screw Coupling | 45 X 52mm | 20/500 |

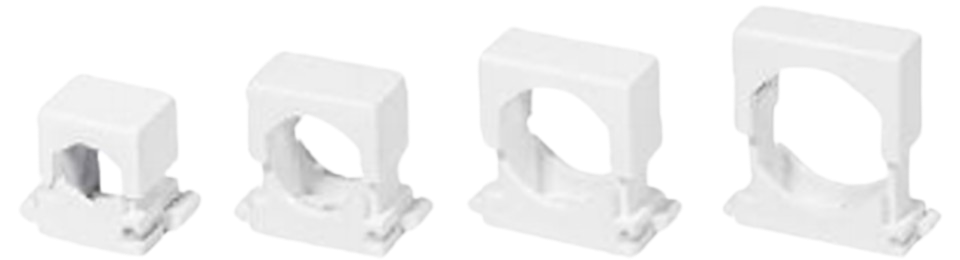

Clip
| # | Description | Measurement | Package |
|---|---|---|---|
| DS053 | 13-15mm CLIP | 28 X 16 X 27mm | 100/2000 |
| DS054 | 16-20mm CLIP | 36 X 16 X 32mm | 100/2000 |
| DS055 | 20-25mm CLIP | 42 X 16 X 39mm | 100/1000 |
| DS056 | 25-32mm CLIP | 50 X 16 X 47mm | 100/500 |

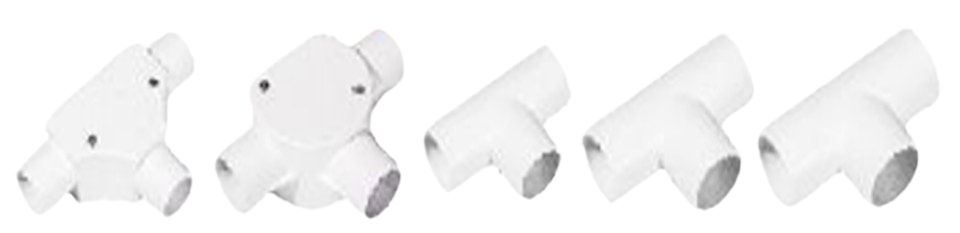

Tee & Solid Tee
| # | Description | Measurement | Package |
|---|---|---|---|
| DS020 | 20mm Tee | 107.5 X 67 X 33 (Spout length: 21mm) | 20/400 |
| DS021 | 25mm Tee | 114.5 X 81.5 X 43 (Spout length: 26mm) | 20/400 |
| DS085A | 20mm Solid Tee | 62.5 X 43 X 24(Spout length: 19mm) | 20/400 |
| DS085B | 25mm Solid Tee (3 X 25mm Spouts) | 77.5 X 53 X 29 (Spout length: 25mm) | 20/400 |
| DS085C | 25mm Solid Tee (2X25mm, 1X20mm Spouts) | 77.5 X 53 X 29 (Spout length: 25mm) | 20/400 |

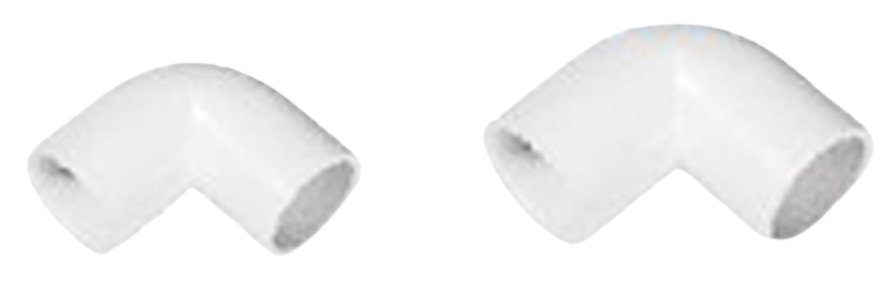

Solid Elbow
| # | Description | Measurement | Package |
|---|---|---|---|
| DS018 | 20mm Solid Elbow | 56 X 56 X 24.5(Spout length: 19mm) | 20/400 |
| DS019 | 25mm Solid Elbow | 64 X 64 X 32.5(Spout length: 21mm) | 20/400 |

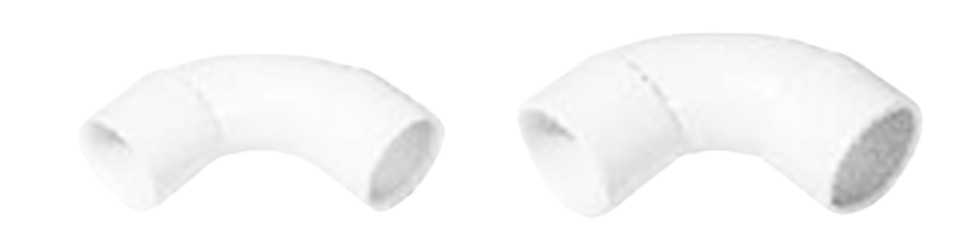

Straight Elbow
| # | Description | Measurement | Package |
|---|---|---|---|
| DS086A | 20mm Straight Elbow | 43.2 X 43.2 X 24(Spout length: 20mm) | 20/400 |
| DS086B | 25mm Straight Elbow | 53.5 X 53.5 X 29.3(Spout length: 25mm) | 20/400 |
