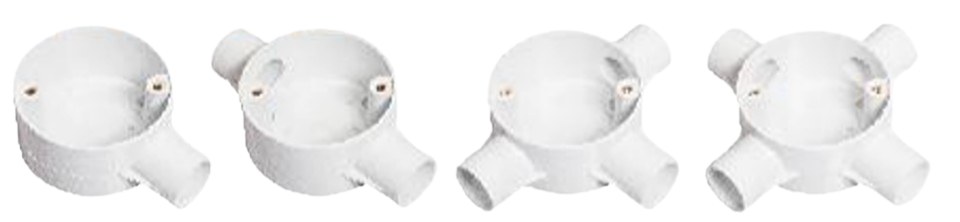

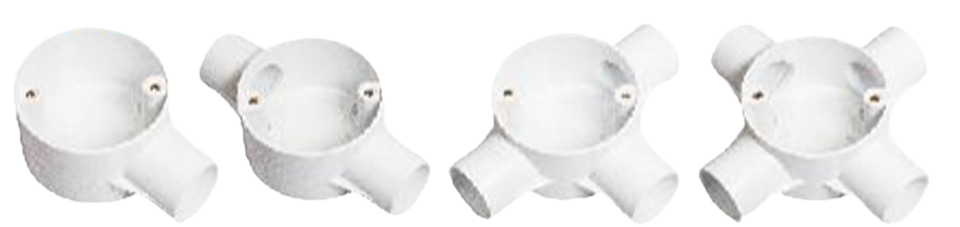

Junction Box 1
| # | Description | Measurement | Package |
|---|---|---|---|
| DS031-1 | 20mm 1 Way Junction Box | 85 X 65 X 32 (65) (Spout Length:21mm) | 20/400 |
| DS031-2 | 20mm 2 Way Junction Box | 107.5 x 65 x 32 (65) (Spout Length:21mm) | 20/400 |
| DS031-3 | 20mm 3 Way Junction Box | 107.5 x 86 x 32 (65) (Spout Length:21mm) | 20/400 |
| DS031-4 | 20mm 4 Way Junction Box | 107.5 x 107.5 x 32 (65) (Spout Length:21mm) | 20/400 |

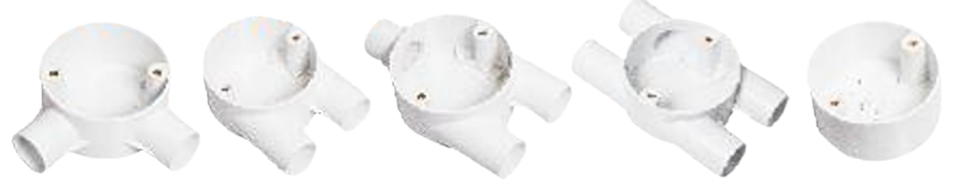

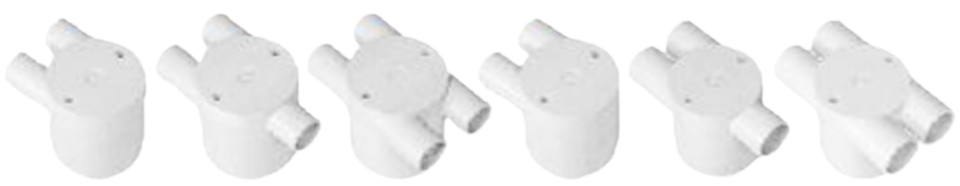

Junction Box 2
| # | Description | Measurement | Package |
|---|---|---|---|
| DS031-5 | 20mm Angle Way Junction Box | 86 X 86 X 32 (65) (Spout Length:21mm) | 20/400 |
| DS031-U | 20mm U Way Junction Box | 86 X 65 X 32 (65) (Spout Length:21mm) | 20/400 |
| DS031-Y | 20mm Y Way Junction Box | 107.5 X 65 X 32 (65) (Spout length: 21mm) | 20/400 |
| DS031-H | 20mm H Way Junction Box | 107.5 x 65 x 32 (65) (Spout Length:21mm) | 20/400 |
| DS070 | 20mm Looping Box | 65 X 32mm | 20/400 |
Junction Box 3
| # | Description | Measurement | Package |
|---|---|---|---|
| DS031-1A | 25mm 1 Way Junction Box | 89 X 65 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS031-2A | 25mm 2 Way Junction Box | 113.5 X 65 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS031-3A | 25mm 3 Way Junction Box | 113.5 X 89 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS031-4A | 25mm 4 Way Junction Box | 113.5 X 113.5 X 38 (65) (Spout Length:24.5mm) | 20/400 |

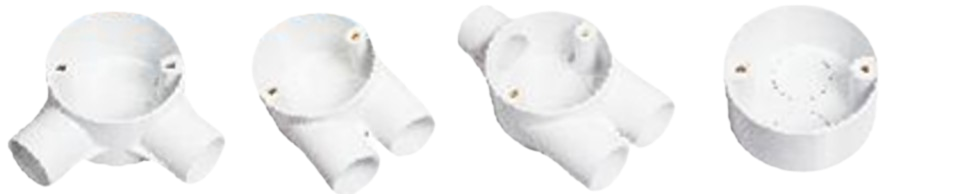

Junction Box 4
| # | Description | Measurement | Package |
|---|---|---|---|
| DS031-5A | 25mm Angle Way Junction Box | 89 X 89 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS031-UA | 25mm U Way Junction Box | 89 X 65 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS031-YA | 25mm Y Way Junction Box | 113 X 65 X 38 (65) (Spout Length:24.5mm) | 20/400 |
| DS070A | 25mm Looping Box | 65 X 32mm | 20/400 |

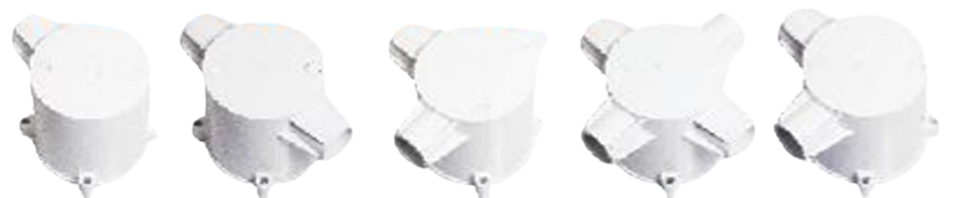

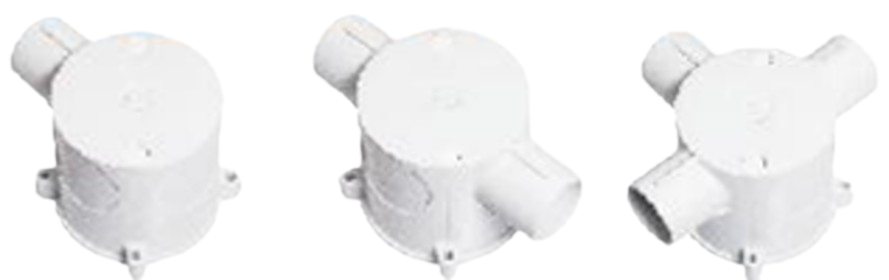

R Deep Junction Box 1
| # | Description | Measurement | Package |
|---|---|---|---|
| DS033R-1 | R Deep 1 Way Junction Box | 86 X 67.5 X 62.5 (67.5) (Spout Length:21.5mm) | 20/100 |
| DS033R-2 | R Deep 2 Way Junction Box | 107 X 67.5 X 62.5 (67.5) (Spout Length:21.5mm) | 20/100 |
| DS033R-3 | R Deep 3 Way Junction Box | 107 X 86 X 62.5 (67.5) (Spout Length:21.5mm) | 20/100 |
| DS033R-4 | R Deep 4 Way Junction Box | 107 X 107 X 62.5 (67.5) (Spout Length:21.5mm) | 20/100 |
| DS033R-5 | R Deep 5 Way Junction Box | 86 X 86 X 62.5 (67.5) (Spout Length:21.5mm) | 20/100 |
R Deep Junction Box 2
| # | Description | Measurement | Package |
|---|---|---|---|
| DS033R-U | R20mm Deep U Way Junction Box | 86.5 X 65 X 71.5 (Spout Length:22mm) | 20/100 |
| DS033R-Y | R20mm Deep Y Way Junction Box | 107.5 X 65 X 71.5 (Spout Length:22mm) | 20/100 |
| DS033R-H | R20mm Deep H Way Junction Box | 107.5 X 65 X 71.5 (Spout Length:22mm) | 20/100 |
| DS033R-U/25 | R25mm Deep U Way Junction Box | 90 X 65 X 72 (Spout Length: 24.5mm) | 10/100 |
| DS033R-Y/25 | R25mm Deep Y Way Junction Box | 113.5 X 65 X 72 (Spout Length: 24.5mm) | 10/100 |
| DS033R-H/25 | R25mm Deep H Way Junction Box | 113.5 X 65 X 72 (Spout Length: 24.5mm) | 10/100 |
R Deep Junction Box 3
| # | Description | Measurement | Package |
|---|---|---|---|
| DS033R-1A | R25mm Deep 1 Way Junction Box | 88.5 X 68 X 62.5 (68) (Spout length: 25mm) | 20/100 |
| DS033R-2A | R25mm Deep 2 Way Junction Box | 113 X 68 X 62.5 (68) (Spout length: 25mm) | 10/100 |
| DS033R-3A | R25mm Deep 3 Way Junction Box | 113 X 88.5 X 62.5 (68) (Spout length: 25mm) | 10/100 |

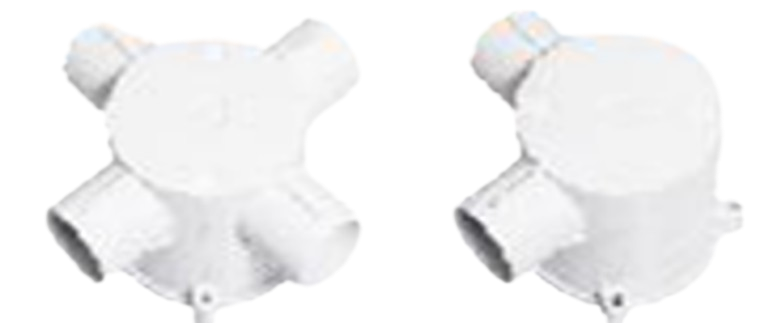

R Deep Junction Box 4
| # | Description | Measurement | Package |
|---|---|---|---|
| DS033R-4A | R25mm Deep 4 Way Junction Box | 113 X 113 X 62.5 (68) (Spout length: 25mm) | 10/100 |
| DS033R-5A | R25mm Deep Angle Way Junction Box | 88.5 X 88.5 X 62.5 (68) (Spout length: 25mm) | 10/100 |

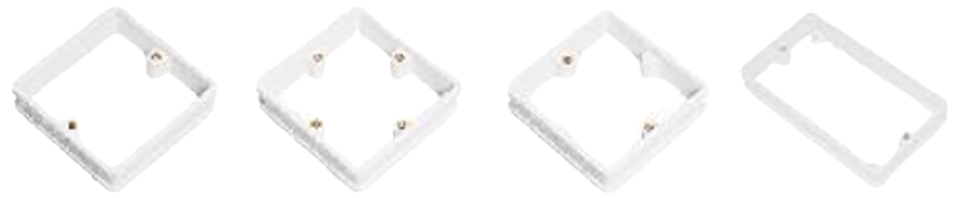

Extension Ring
| # | Description | Measurement | Package |
|---|---|---|---|
| DS024A-2H | 1299 Box Extension Ring (20mm) | 78 X 78 X 20mm | 100/500 |
| DS024A-4H4S | 1299 Box Extension Ring (4 Holes With 4 Screws) | 78 X 78 X 20mm | 100/500 |
| DS024A-4H2S | 1299 Box Extension Ring (4 Holes With 2 Screws) | 78 X 78 X 20mm | 100/500 |
| DS028A | R1363 2 Gang Extension Ring (20mm) | 137 X 77.5 X 20mm | 50/500 |

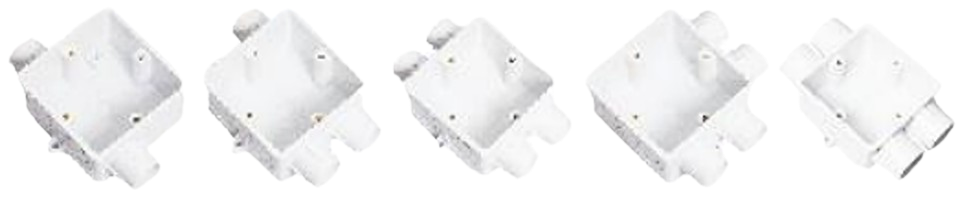

R 1299 1 Gang Box 1
| # | Description | Measurement | Package |
|---|---|---|---|
| DS025R-1 | R 1299 1 Way Box | 98 X 78 X 45 (Spout Length:22mm) | 100 |

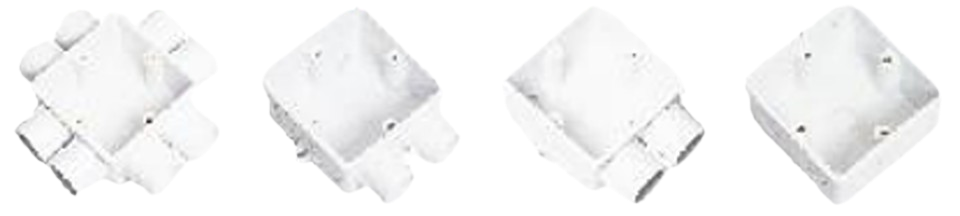

R 1299 1 Gang Box 2
| # | Description | Measurement | Package |
|---|---|---|---|
| DS025R-2 | R 1299 2 Way Box | 117.5 X 78 X 45 (Spout Length:22mm) | 100 |
| DS025R-3 | R 1299 3 Way Box | 117.5 X 78 X 45 (Spout Length:22mm) | 100 |
| DS025R-4 | R 1299 4 Way Box | 118 X 118 X 45 (Spout Length:22mm) | 50 or 100 |
| DS025R-4A | R 1299 Angle 4 Way Box | 98 X 98 X 45 (Spout Length:22mm) | 100 |
| DS025R-4/25 | R 1299 4 Way Box (4 X 25mm) | 78 X 124 X 45 (Spout Length:24.5mm) | 100 |

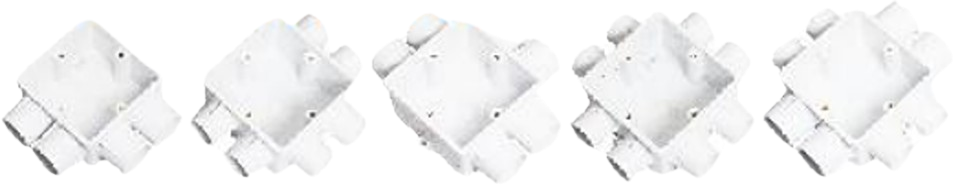

R 1299 1 Gang Box 3
| # | Description | Measurement | Package |
|---|---|---|---|
| DS025R-4A/25 | R 1299 Angle 4 Way Box (25mm) | 101 X 101 X 45 (Spout Length:24.5mm) | 100 |
| DS025R-6 | R 1299 6 Way Box | 117.5 X 98 X 45 (Spout Length:22mm) | 50 or 100 |
| DS025R-6D | R 1299 6 Way Box (6 X 25mm) | 123.5 X 101 X 45 (Spout Length:24.5mm) | 100 |
| DS025R-8 | R 1299 8 Way Box | 107 X 107 X 45 (Spout Length:22mm) | 50 or 100 |
| DS025R-8A | R 1299 8 Way Box (4 X 20/4 X 25mm) | 117.5 X 124 X 45 (20Spout Length:22mm) (25Spout Length:24.5mm) | 100 |
R 1299 1 Gang Box 4
| # | Description | Measurement | Package |
|---|---|---|---|
| DS025R-8C | R 1299 8 Way Box (8 X 25mm) | 123.5 X 123.5 X 45 (Spout Length:24.5mm) | 100 |
| DS025R-U | R 1299 U Way Box | 98 X 78 X 45 (Spout Length:22mm) | 100 |
| DS025R-UA | R 1299 U Way Box (25mm) | 78 X 101 X 45 (Spout Length:24.5mm) | 100 |
| DS027R | R 1299 Deep Box | 78 X 78 X 43mm | 100 |
